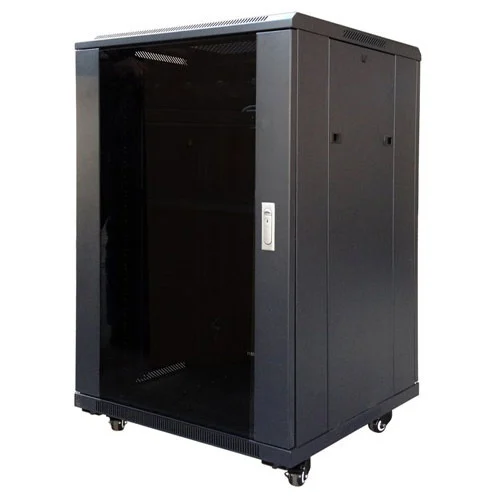

        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack
        17U Floor Standing Rack

        17U Floor Standing Rack

        Price 18750.00 INR/ Piece

        MOQ : 1 Piece

        17U Floor Standing Rack Specification

        • Mounting Type
        • Floor Mount and Adjustable Feet
        • Connectivity Type
        • Rack Mount
        • Features
        • Lockable Doors, Removable Side Panels, Cable Entry, Ventilation Slots
        • Size
        • 19 Inch Standard
        • Interface Type
        • Universal Rack Mount
        • Model
        • 17U-19FLSR
        • Operating Temperature
        • -10°C to +55°C
        • Power Supply
        • No Built-in Power Supply
        • Range
        • Floor Standing
        • Battery Backup
        • No Hours
        • Product Type
        • 17U Floor Standing Rack
        • Application
        • Networking, Server and Data Center Equipment Housing
        • Dimension (L*W*H)
        • 600mm x 800mm x 900mm (approx.) Millimeter (mm)
        • Material
        • Powder Coated Steel
        • Weight
        • Approx. 40-45 kg Kilograms (kg)
        • Capacity
        • 17U T/hr
        • Coverage Area
        • Compact Floor Coverage Square Yard (yd2)
        • Static Load Capacity
        • Up to 800 kg
        • Ventilation
        • Provision for Additional Fan Tray
        • Assembly
        • Supplied in Assembled Condition (Knockdown Available on Request)
        • Door Type
        • Front Glass Door with Lock, Rear Metal Door
        • Compliance
        • Conforms to DIN 41494/IEC 297-2
        • Base
        • Castor Wheels with Stoppers and Levelling Feet
        • Number of Shelves
        • 2 Adjustable Shelves
        • Cable Management
        • Integrated Cable Channels
        • Color
        • Black or Grey (as per requirement)
        • Depth
        • 800mm


        17U Floor Standing Rack Trade Information

        • Minimum Order Quantity
        • 1 Piece
        • Delivery Time
        • 1 Week


        About 17U Floor Standing Rack

        This product is manufactured by an ISO 9001:2015 certified company. Quality assured 19 inch rack manufactured from steel sheet punched, formed, welded and powder coated with high tech manufacturing and quality management system to ensure high quality product. 19 Inch Floor Standing Network Rack with Castor Wheels 4 Nos (2 Nos with Brake), Lock and Key

        Robust Construction and Capacity

        Engineered from powder-coated steel, the 17U Floor Standing Rack supports a static load of up to 800 kg, ensuring safe accommodation for multiple servers, switches, and other critical equipment. Its 19-inch standard size and lockable doors ensure both compatibility and security for enterprise installations.


        Integrated Cable Management and Ventilation

        Designed with integrated cable channels and ventilation slots, this rack enables organized wiring while maintaining airflow. Optional fan tray provision allows for enhanced cooling, which is essential for sensitive data center components operating between -10C to +55C.


        Flexible Installation and Expandability

        With two adjustable shelves, removable side panels, and universal rack mount compatibility, the 17U-19FLSR offers versatile configuration. The inclusion of castor wheels, stoppers, and levelling feet simplify floor mounting and relocation, perfect for evolving infrastructure needs.

        FAQ's of 17U Floor Standing Rack:


        Q: How does the 17U Floor Standing Rack facilitate efficient cable management?

        A: The rack is equipped with integrated cable channels and dedicated cable entry points, ensuring that wires and cables are organized neatly, reducing clutter and enhancing safety within server rooms and data centers.

        Q: What is the installation process for the 17U Floor Standing Rack, and is professional assembly required?

        A: The rack is supplied fully assembled but can be provided in knockdown form on request. Installation is straightforward-just position, secure using levelling feet and stoppers, and attach additional components as required. Professional assembly is optional but can ensure optimal setup.

        Q: When should I consider upgrading to the 17U Floor Standing Rack?

        A: Consider upgrading when you need a secure, scalable solution for networking or server equipment, or if your current rack lacks adequate load capacity, cable management, or environmental controls suitable for data centers or enterprise networks.

        Q: Where is this rack most effectively utilized?

        A: This model is ideal for networking, server, and data center environments, especially in locations across India that require robust, compact floor coverage and compliance with DIN 41494/IEC 297-2 standards.

        Q: What are the main benefits of the rack's lockable doors and removable side panels?

        A: Lockable glass doors provide security for sensitive equipment, while removable side panels offer convenient access for maintenance, upgrades, and easier cable management.

        Q: Can additional cooling be integrated into this rack, and how?

        A: Yes, the rack features a provision for an additional fan tray. This allows users to install extra cooling fans, enhancing ventilation and maintaining ideal operating temperatures for critical hardware.
