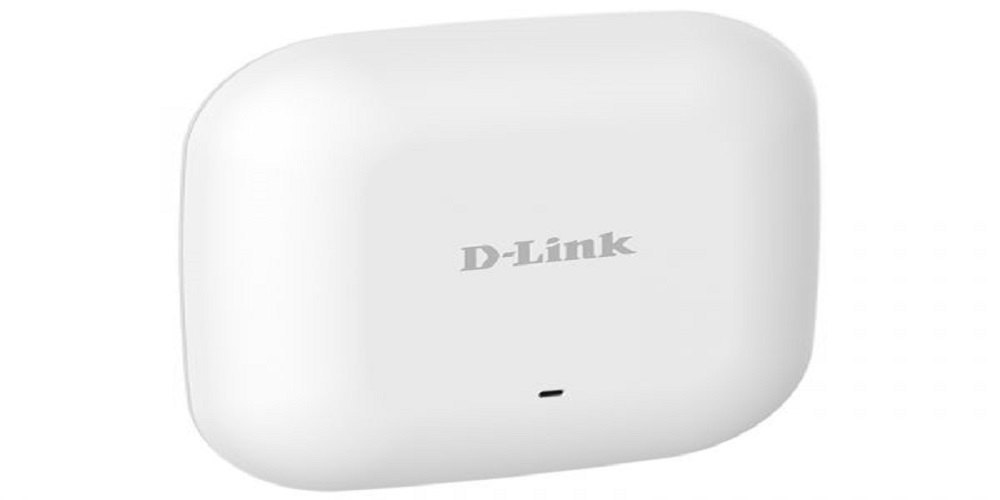

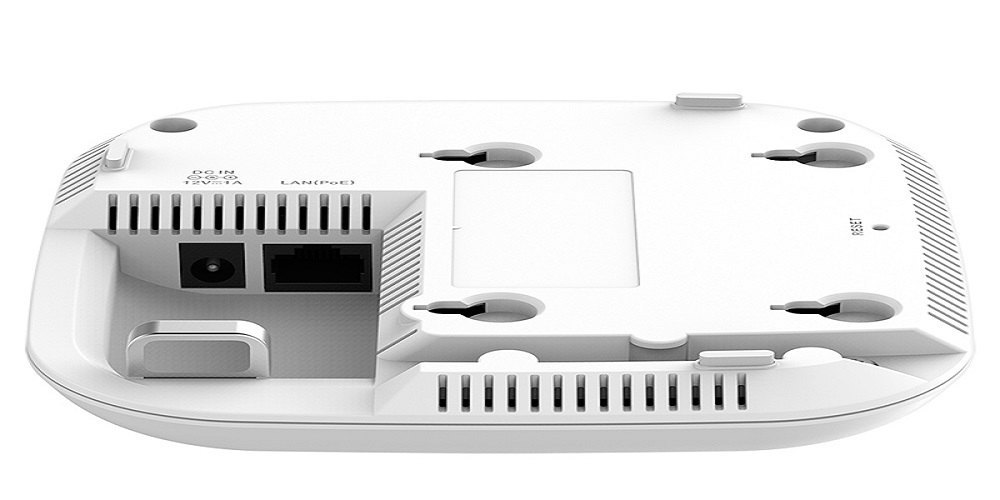

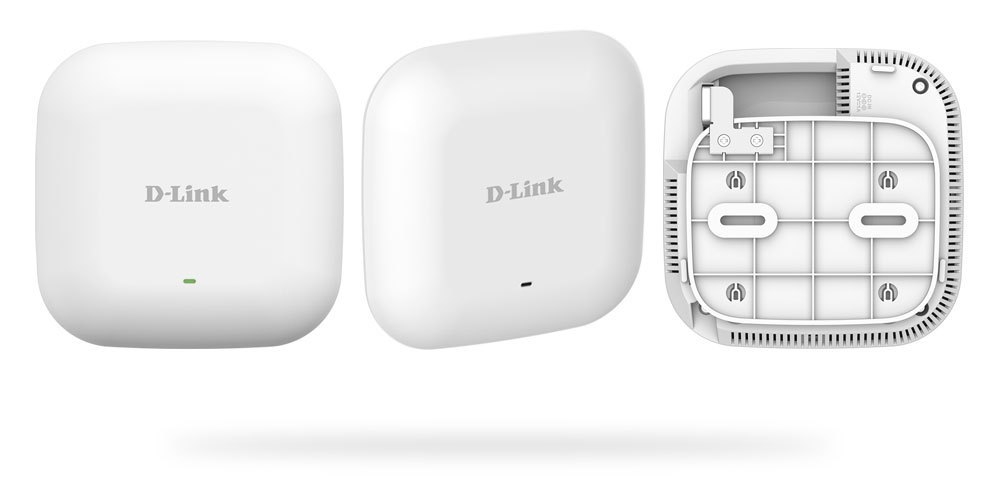

Send InquiryD-Link DAP-2230
D-Link DAP-2230 Specification
- Model
- DAP-2230
- Power Supply
- 12V DC / IEEE 802.3af PoE
- Interface Type
- 1 x 10/100Base-TX Fast Ethernet (PoE)
- Size
- Compact Square Design
- Connectivity Type
- Wireless N (802.11b/g/n), Ethernet (LAN)
- Mounting Type
- Wall/Ceiling Mountable
- Range
- Up to 300 meters (indoor conditions vary)
- Operating Temperature
- 0C to 40C
- Frequency
- 2.4 GHz
- Features
- Multiple Operation Modes (Access Point, Wireless Client, WDS with AP, WDS/Bridge), VLAN Support, Traffic Control by MAC, SSID, or IP Address
- Product Type
- Wireless N PoE Access Point
- Application
- Wireless Networking, Small & Medium Business Wi-Fi Deployment
- Dimension (L*W*H)
- 160 x 160 x 45 mm
- Material
- ABS Plastic Housing
- Weight
- 350 g
- Capacity
- Supports up to 8 SSIDs, 64/128-bit WEP, WPA/WPA2 Security
- Coverage Area
- Up to 300m (Open Area)
- Reset Button
- Yes
- Guest Network
- Supported
- Humidity (Operating)
- 10% ~ 90% (Non-condensing)
- Operating Modes
- Access Point, Wireless Client, WDS, WDS with AP, Repeater
- MAC Address Filtering
- Enabled
- Antenna Type
- Built-in Internal Antenna
- Wireless Speed
- Up to 300 Mbps
- Power Consumption
- 3.9W
- LED Indicator
- Power/Status
- QoS (Quality of Service)
- Supported
- Security Encryption
- WPA/WPA2-Personal/Enterprise
- Management
- Web-based GUI, SNMP Support
- Firmware Upgrade
- Supported via Web Interface
About D-Link DAP-2230
Versatile Deployment for Multiple Applications
The D-Link DAP-2230 is perfect for wireless networking in commercial spaces, including small to medium offices, retail stores, and hospitality environments. Its flexible mounting options-wall or ceiling-allow for easy integration into varied interiors. This device is tailored for diverse application media such as laptops, desktops, and smart devices, making it suitable for locations where reliable, high-speed Wi-Fi is critical. Enjoy trouble-free deployment and adapt the DAP-2230 to your specific business surface requirements.
Certifications, Delivery, and Payment Simplified
The D-Link DAP-2230 arrives with all requisite certifications ensuring reliable operation and compliance. Experience a swift drop-off delivery, typically fulfilled within the standard industry rate for turnaround times. Our straightforward purchase order system accommodates multiple payment terms, providing flexibility to meet your procurement needs. Trust the process for a smooth and efficient buying experience so your business stays connected without delay.
FAQ's of D-Link DAP-2230:
Q: How does the D-Link DAP-2230 benefit small and medium business networks?
A: The D-Link DAP-2230 provides reliable, high-speed wireless connections, supports up to 8 SSIDs, enables multiple operation modes, and offers advanced security features, making it ideal for business environments requiring robust network management.Q: What operating modes does the DAP-2230 support?
A: The DAP-2230 operates as an access point, wireless client, WDS, WDS with AP, and repeater, delivering exceptional flexibility to fit varied network topologies and business needs.Q: When should I use the guest network feature on this device?
A: Enable the guest network function when you want to provide temporary or limited access to visitors, while keeping your main network secure and protected from unauthorized access.Q: Where can the DAP-2230 be mounted for optimal coverage?
A: The DAP-2230 can be mounted on walls or ceilings, adapting easily to open spaces or areas requiring broad coverage up to 300 meters, ideal for offices, retail, or public areas.Q: What is the process for upgrading the DAP-2230 firmware?
A: You can upgrade the firmware conveniently via the web-based interface, ensuring your device receives the latest features and security enhancements.
